Semi-automatic self-sizing taping machine that seals with self-adhesive tape GEM X520 - X670 - X820
Gagliardi Packaging

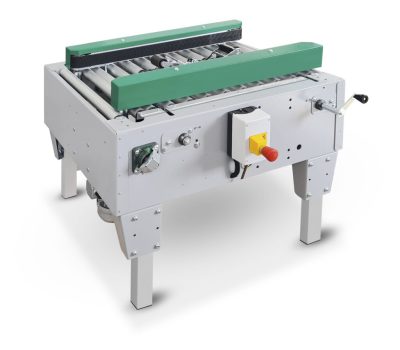

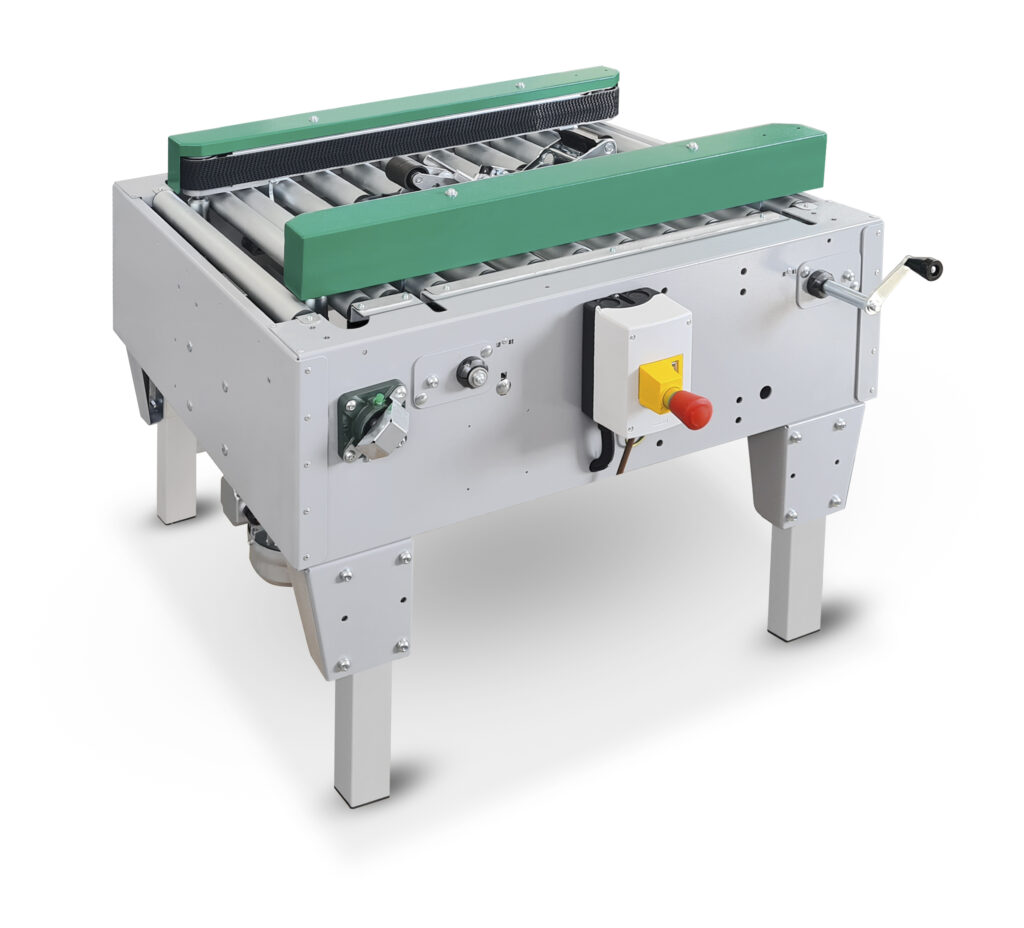

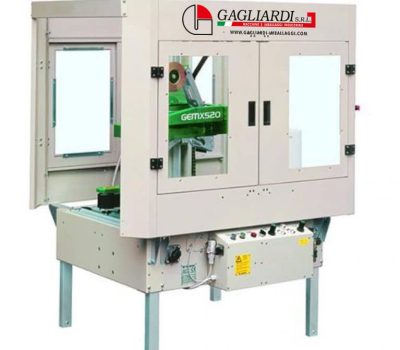

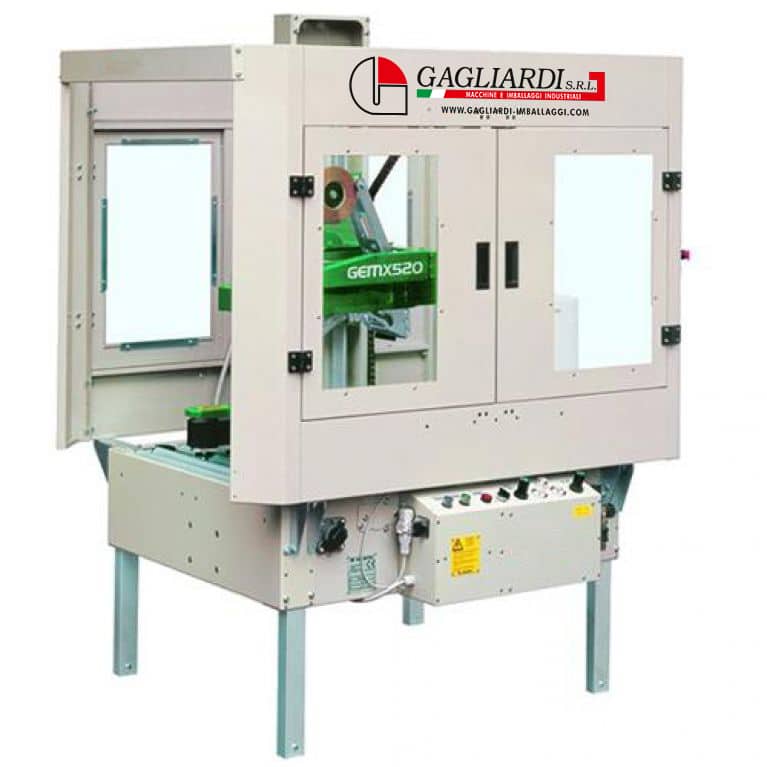

TAPING MACHINE X520 - X670 - X820
The models GEM they are suitable for closing cartons with different length, width and height dimensions, which reach the taping machine in random order.
- The taping unit and the two lateral driving arms automatically adapt to the dimensions of the boxes.
- The advancement of the boxes takes place by means of lateral driving belts controlled by a single motor, thus optimizing to the maximum the uniformity of sliding of the boxes and ensuring perfect alignment of the upper and lower flaps which thus guarantee perfect sealing.
- These sealing machines can be used either with manual feeding of the cartons by an operator or by adding a motorized centering and timing conveyor (DAC) be inserted into packaging lines
Characteristics
- Structure of the machine body in folded, bolted and painted steel sheet, the dragging of the cartons occurs via four flat driving belts, 2 at the bottom, controlled by a single motor, the blocking of the cartons occurs via the pneumatic drive of two lateral arms.
- Standard taping heads: T22 or T23 for adhesive tape with a width of 50 mm
- Supports: with fixed support
